AR-gestützte Qualitätskontrolle vom Stanzen bis zur Endmontage
SuPAR digitizes quality control across the automotive production chain — from tool and die buy-off through body-in-white assembly to final stamped part validation. AR-based visual inspection replaces paper-based methods, enabling faster supplier approvals, precise fixture verification, and reliable BIW target checks.
With real-time CAD overlay on physical parts, quality teams can detect missing elements, wrong positioning, and geometry deviations in seconds rather than hours. An OEM supplier experience review showed SuPAR control reduces inspection time from 85% to just 15% of an inspector’s total work time — making it 6 times faster than traditional manual inspection methods.
SuPAR supports the full automotive inspection workflow: incoming parts verification, tool and die buy-off, welding fixture assembly, BIW targets inspection, stamped part validation, logistic rack proofing, and Meisterbock and Cubing digital mock-ups.

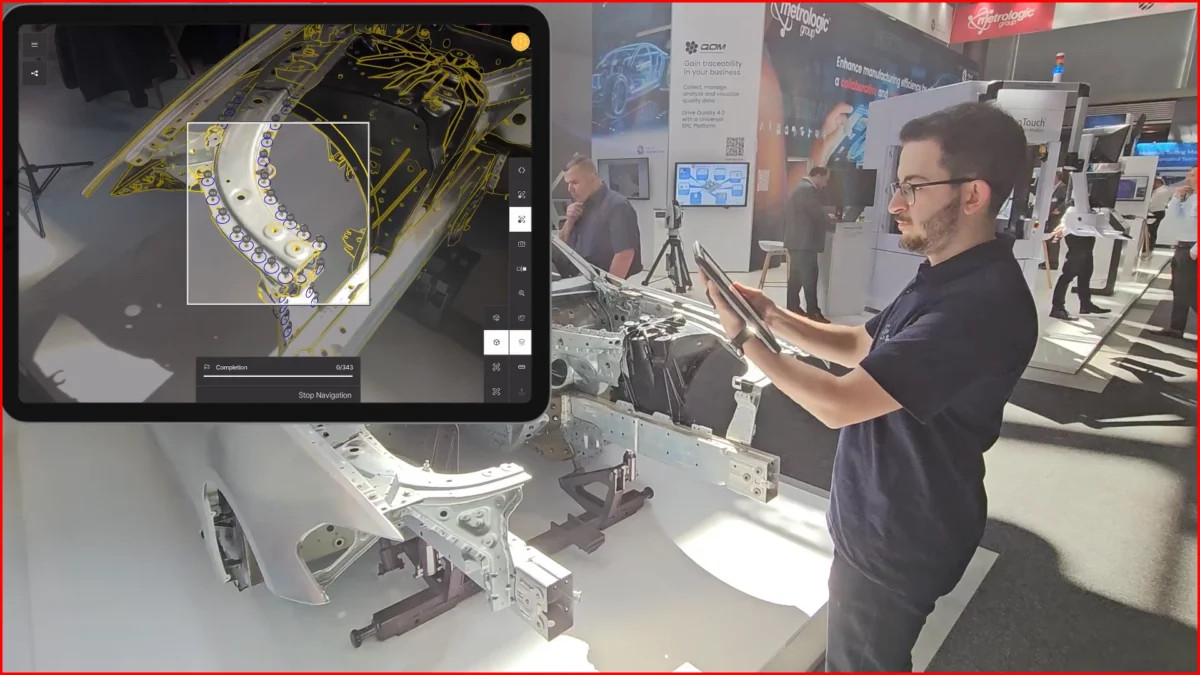

Body in White (BIW) Targets Inspection
Paperless visual analysis of critical BIW manufacturing details. Quickly verify arc welds, spot welds, holes, rivets, bolts, nuts, insulators, surface defects, ID marks, and sealing beads to maintain peak production quality.

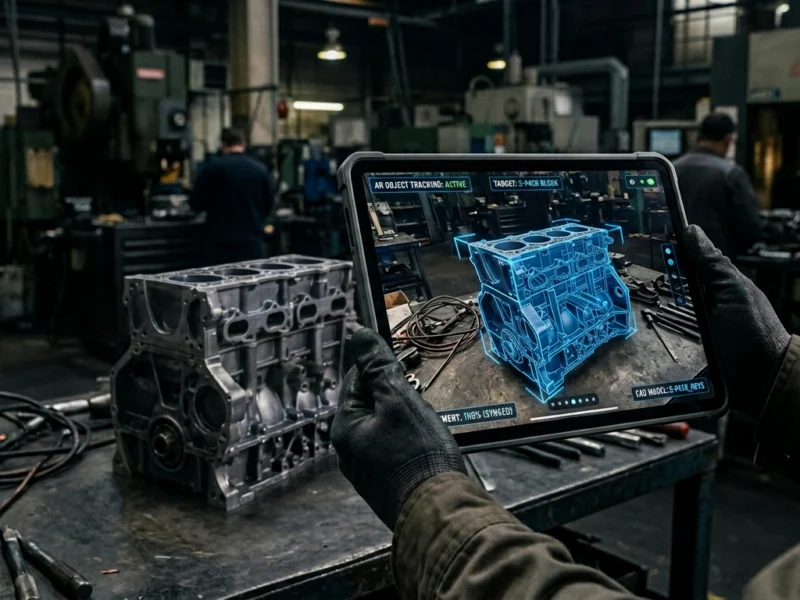

Tool and Die Buy-Off
AR visual inspection enables fast and accurate detection of wrong offsets, incorrect tool positioning, and missing or incorrect features. Supporting remote approvals and early offset verification helps prevent costly rework and ensures tooling readiness before production starts.
- Pattern and tool remote approval — reduce travel time
- Tool offset check before finishing operations
- Wrong labeling, missing machining, hole pattern detection
- AR visual inspection possible at supplier site
Supplier Incoming Part Inspection
Fast and reliable inspection of prototype and sub-assembly parts directly at the supplier stage. Quick geometry checks with easy sheet selection via name, number, QR code, or barcode for early detection of conformity issues.
- Quick preliminary geometry inspection
- Early detection of quality problems
- Visual inspection at supplier location
- Sheet selection via name, number, QR, or barcode

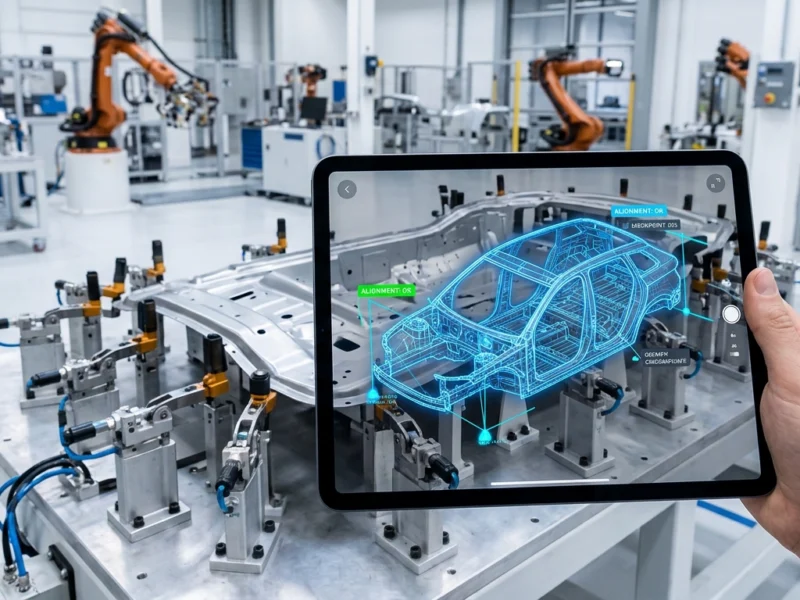

Fixture and Jigs Setup and Check
Streamline the assembly and maintenance of welding and control fixtures through high-speed AR inspection. Ensure 100% installation accuracy, enable rapid setup adjustments, and facilitate global virtual collaboration via remote access.
- Ensure entire fixture installed correctly
- Verify all parts in correct positions
- Virtual collaboration for worldwide sampling
- Remote access reduces travel costs

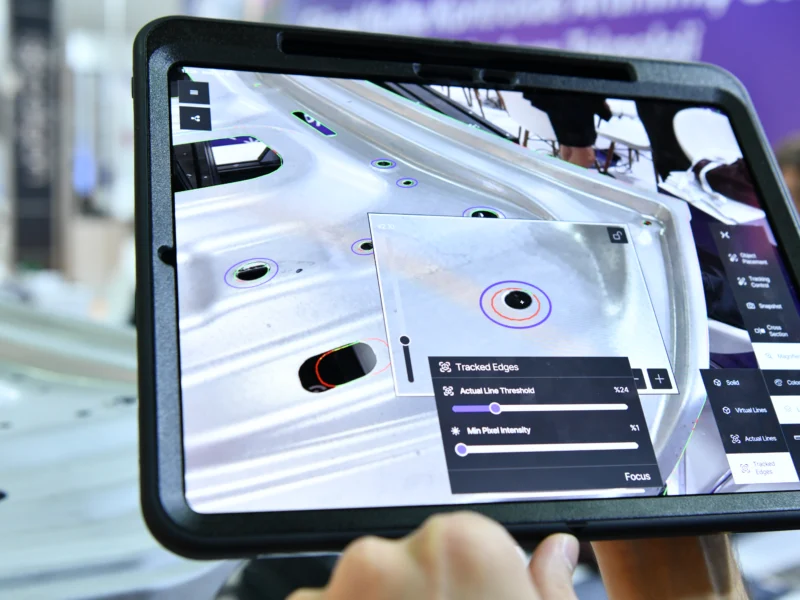

Stamped Part Validation
Comprehensive digital toolkit for rapid geometry checks and quality assurance of stamped parts. Visually inspect critical features through control points and document findings instantly using annotations and photos directly on the 3D model.
- Geometry check of stamped parts
- Annotations and photos on 3D model
- Control points on critical machining features
- Digital reporting: PDF, Excel, Word, 3D
Fähigkeiten
Logistic Rack Inspection
Faster and safer production rack proofing using AR instead of paper or CAD methods. Quickly check racks for repair, maintenance, and supplier buy-off to keep the assembly line safe.
